Matric Line

ELECTRONIC MANUFACTURING SERVICES

We provide world-class Electronic Manufacturing Services (EMS) with personalized support.  We specialize in high mix/low to mid-volume contract assembly.  Offering both turnkey and board-level assembly, we excel at working closely with customers to meet unique assembly or testing requirements.


PRINTED CIRCUIT BOARD ASSEMBLY

SURFACE MOUNT

A printed circuit board (PBC) can be an asset or a liability for an electronic product.  For more than 10 years, we have designed PCBs for a variety of challenging applications.  Our designers are IPC certified and are skillful craftsmen who will work with you to design a quality PCB that meets all your requirements.

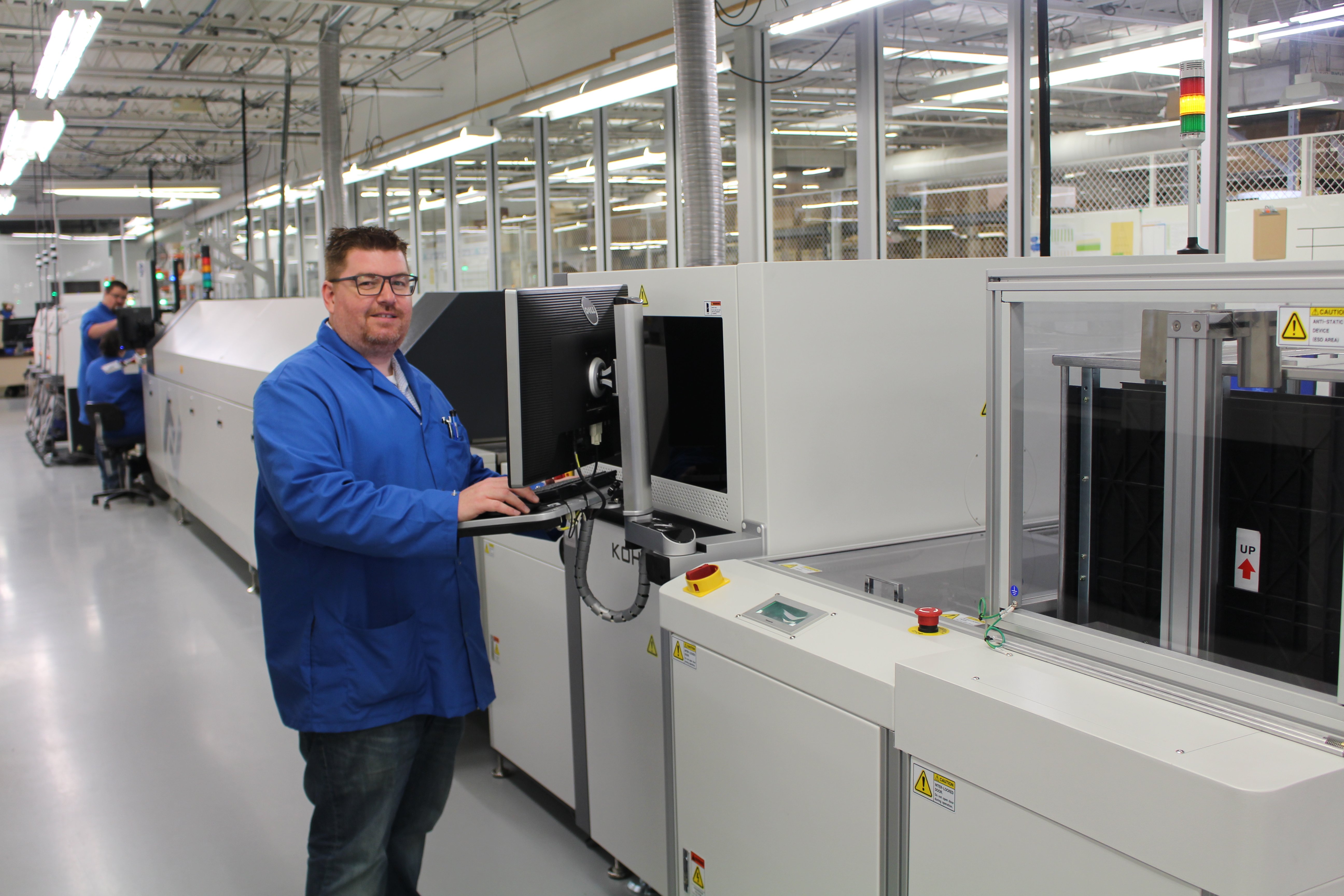

SMT Line 8

CAPABILITIES:

  • SMT Experience since 1989
  • IPC Certified Lead-Free Processes & Equipment
  • BGA & MicroBGA (Ball Grid Array)
  • Capable of placing 0201mm (.25mm*0.125mm) Components

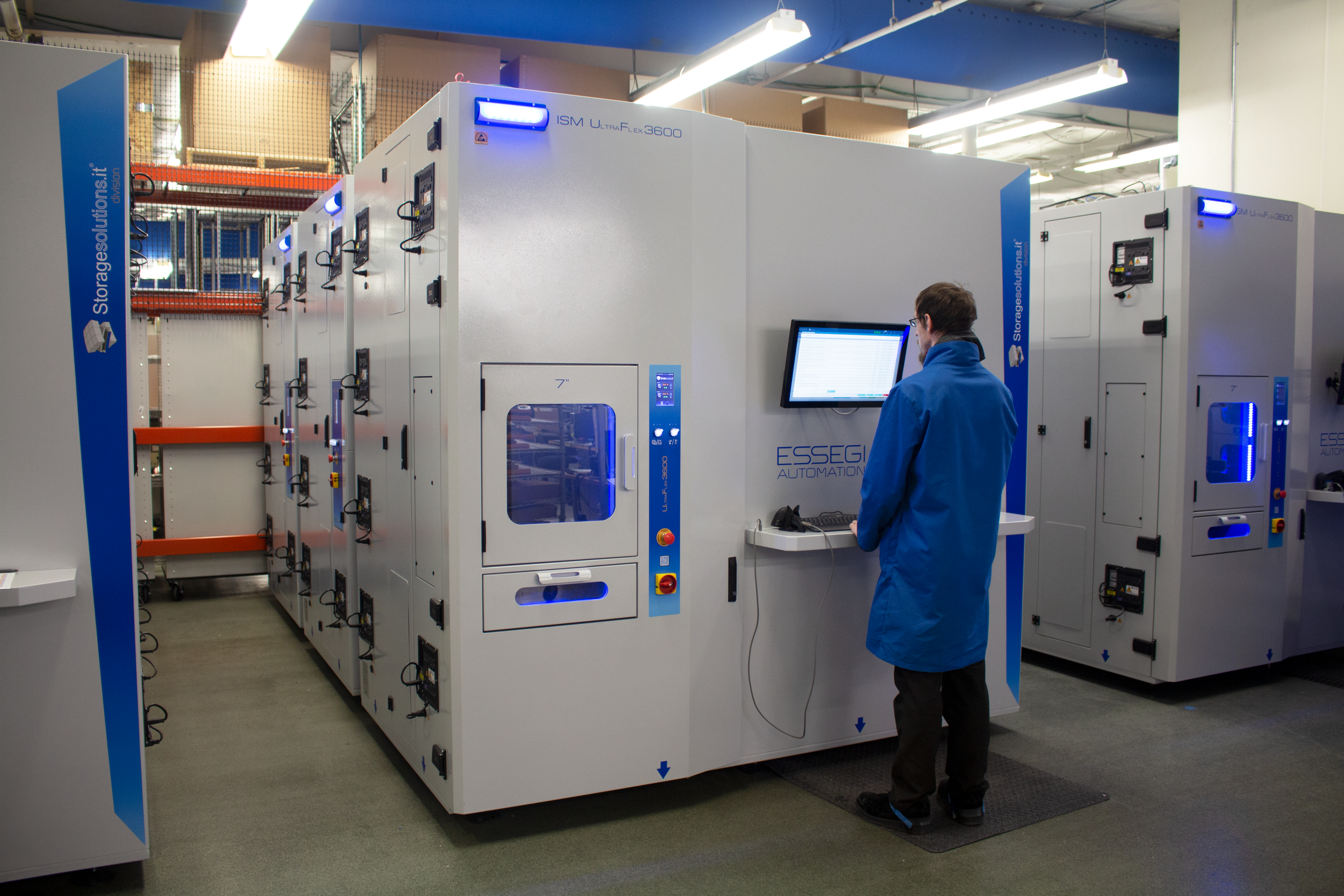

Justin Hewston working with the new JUKI storage system

ADDITIONAL EQUIPMENT:

  • JUKI Storage System - Humidity-Controlled Component Units
  • Wave Solder Machines
  • AOI Machines
  • X-Ray Inspection Machines
  • Flying Prove Circuit Test Machines
  • Laser Etch
  • Semi-Automatic PCB Depanelizing System
  • Conformal Coating
    • Conap
    • Hysol
    • Humiseal

PRINTED CIRCUIT BOARD ASSEMBLY

THROUGH-HOLE

A printed circuit board (PBC) can be an asset or a liability for an electronic product.  For more than 10 years, we have designed PCBs for a variety of challenging applications.  Our designers are IPC certified and are skillful craftsmen who will work with you to design a quality PCB that meets all your requirements.

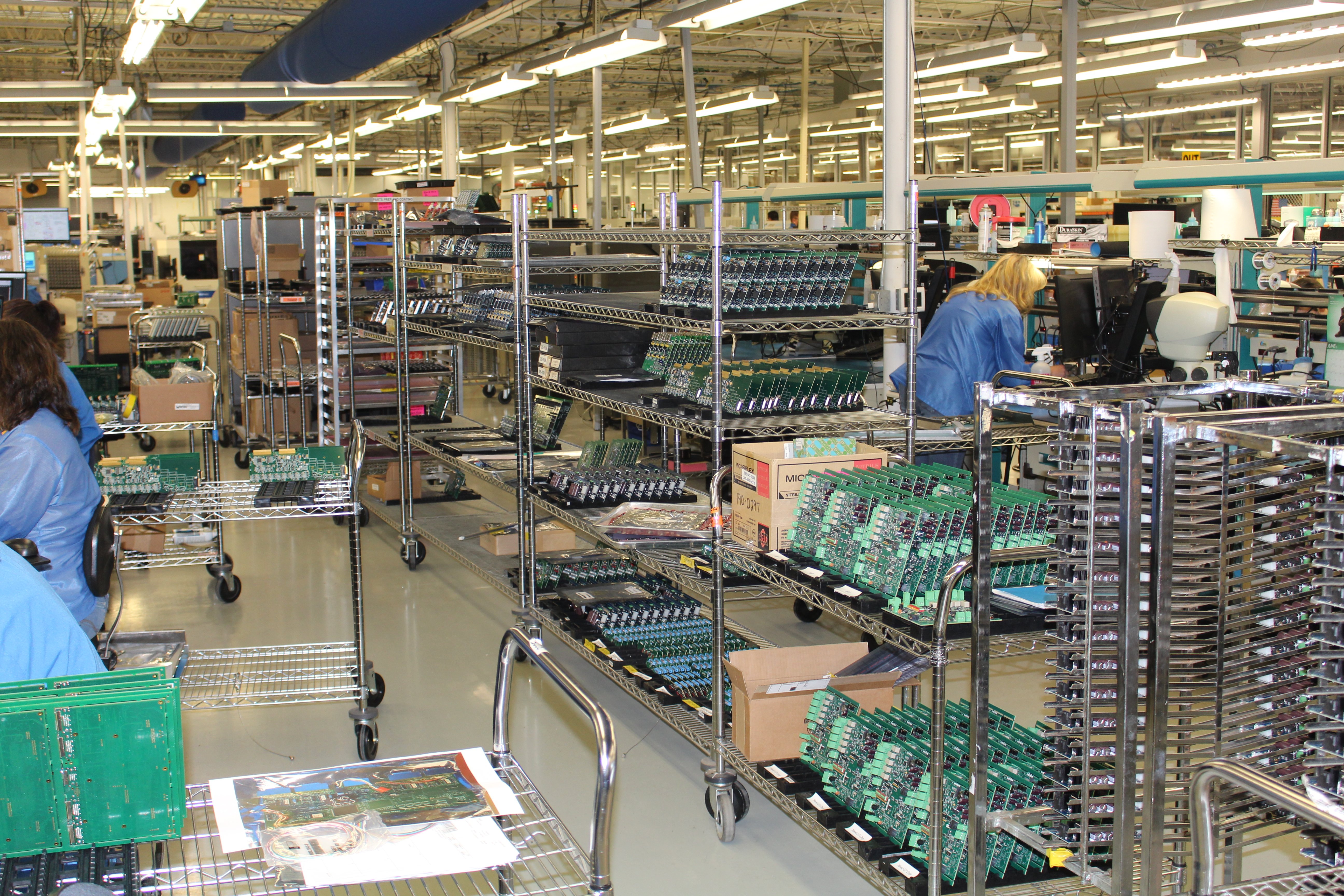

Production 7

CAPABILITIES:

  • IPC Certified Hand Soldering
  • Precision Component Lead Forming
  • Dual Wave Flowsolder Equipment w/Aqueous Cleaning
  • Selective Solder Equipment

Production Six

INSPECTION & TESTING:

  • Visual Inspection
  • X-Ray Inspection
  • Automatic Optical Inspection
  • BGA Inspection
  • Solder Paste Inspection
  • Functional Testing
  • RF Testing
  • Potting
RELATED ARTICLES

WHAT IS SMT ASSEMBLY?

As today's electronics designs become smaller and more complex, more engineers are relying on surface mount technology...

READ NOW



What is Turnkey PCB Assembly

PCB Assembly Services: Through-Hole Vs. Surface Mount

Common Causes of PCB Failure

Worth it to Outsource PCB Assembly Services? Definitely!

Your Go-To Guide to Reducing PCB Assembly Cost



ELECTROMECHANICAL ASSEMBLY

A dedicated final assembly team will successfully integrate PCBs into box builds, enclosures, and more from simple to complex projects.

CAPABILITIES:

  • Box Build
  • Final Assembly
  • Custom Packaging
  • Encapsulation Capability
  • Intrinsically Safe Assembly
  • Explosion Proof Assembly

INSPECTION & TESTING:

  • Shock & Vibration
  • Thermal Cycling
  • Late Stage Customization

SPECIALTY TOOLS & EQUIPMENT:

  • Functional Testing
  • Potting
  • Heat Shrinking
  • 3 Ton Crane
  • Multiple RF Cages

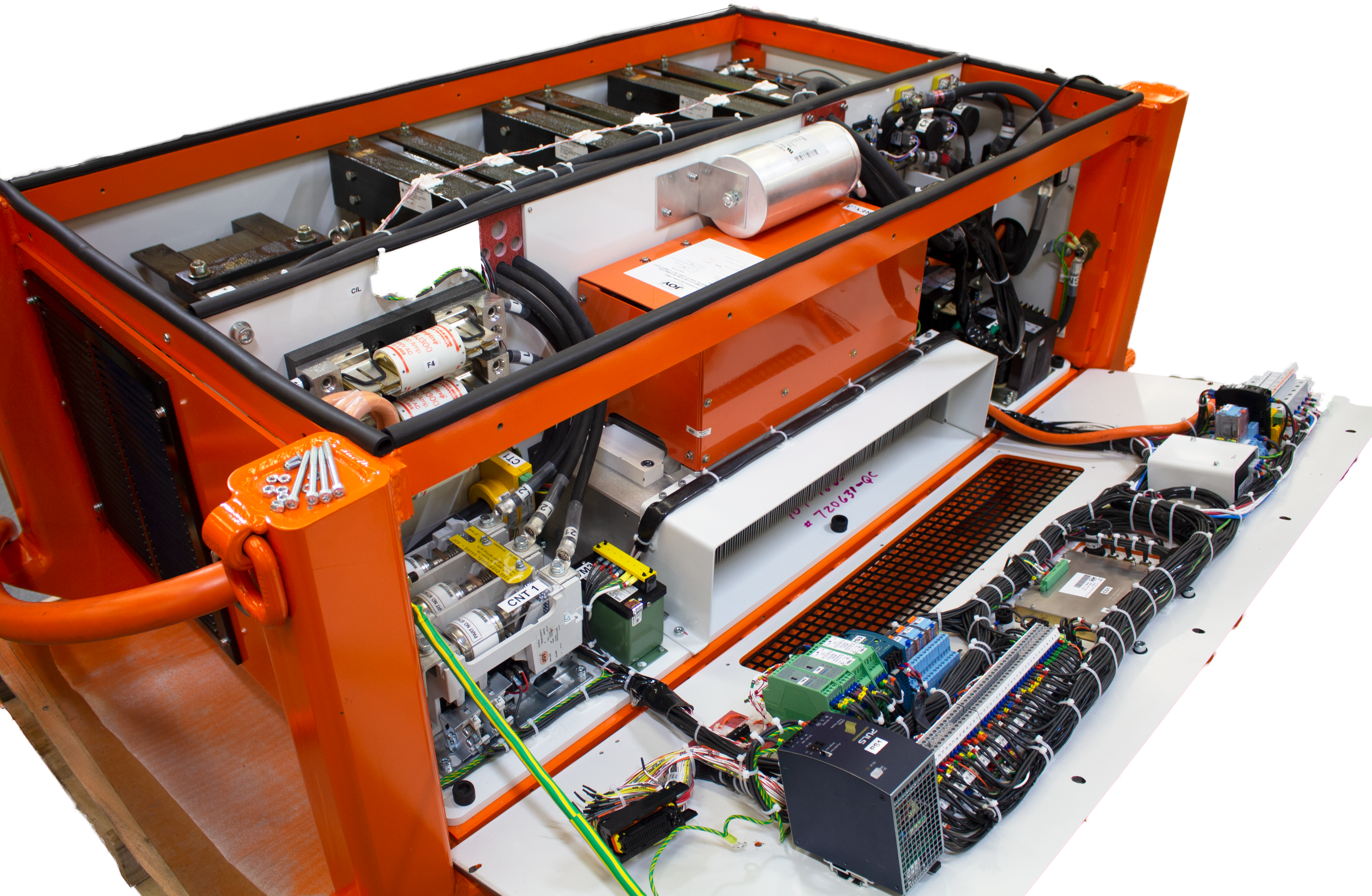

Untitled-1

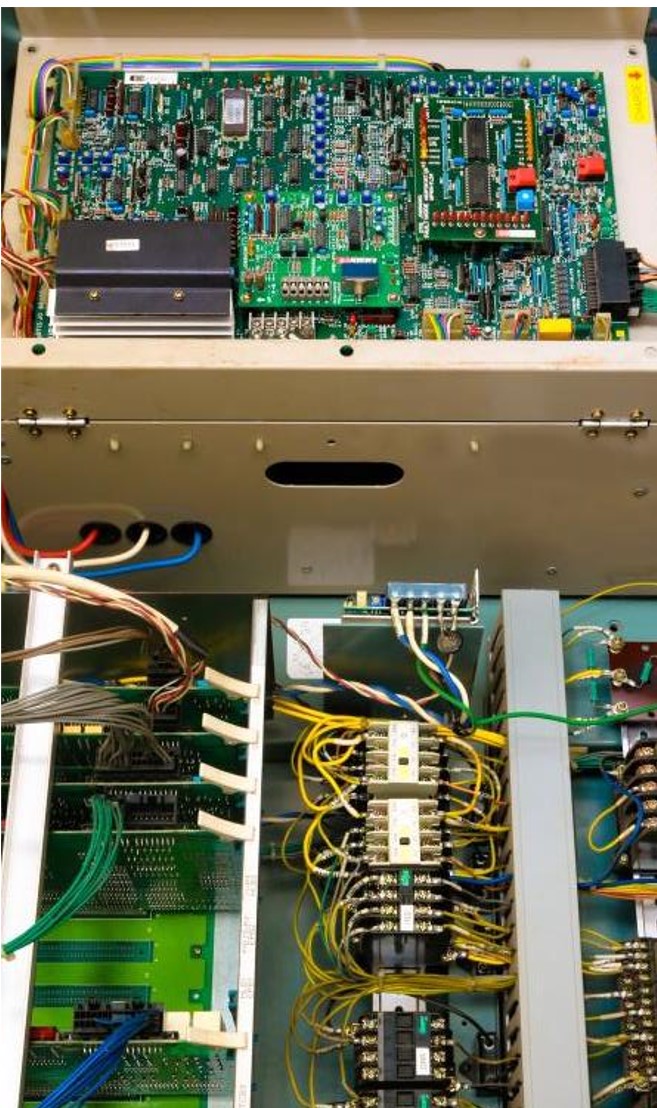

boxbuild2





CABLE & HARNESS ASSEMBLY

We specialize in harsh-environment cables and harnesses.  We design, test, and manufacture quality cable assemblies from micro push-pull connectors to harnesses, to interconnects and complex assemblies.

CAPABILITIES

  • Harsh Environment Cable
  • Custom Cable & Wire Harnesses
  • Custom Overmolding
  • Panel/Box Wiring
  • Mechanical
  • Build to IPC-WHMA-A-620
  • Custom Mold Design
  • Variety of modular molds in stock
  • PVC, Polypropylene, Neoprene, & Santoprene

SPECIALTY TOOLS & EQUIPMENT:

  • 30-Ton, 5 oz. Plastic Injection Mold Machine
  • Programmable Cutter/Stripper
  • Semi-Automated Crimpers
  • Over 250 Crimping Tools
  • Continuity & Hipot Omni Testing
  • Automated Cable Testing
  • Vulcanizing Transfer Press

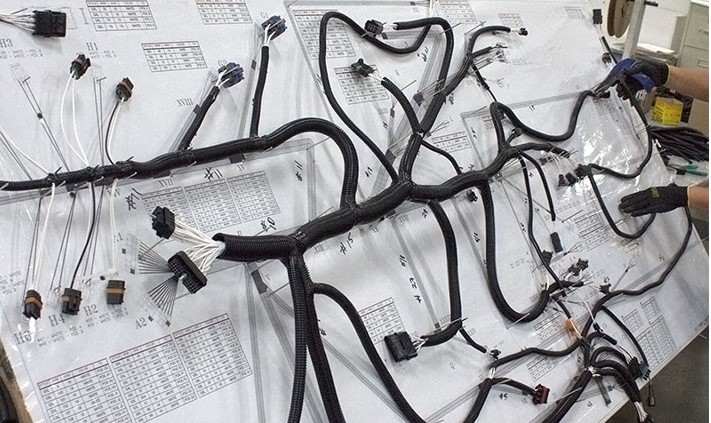

cable and harness assembly

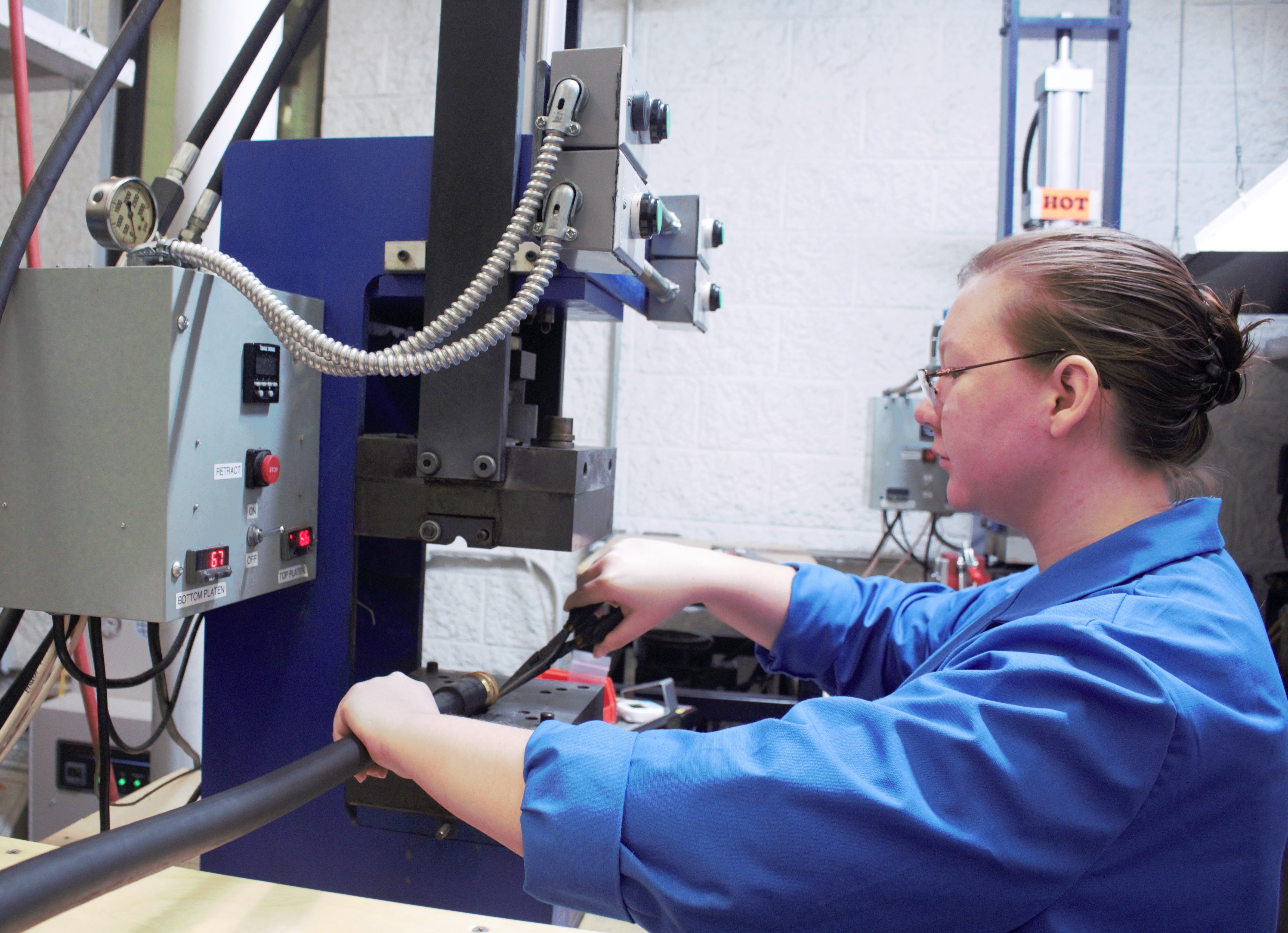

CAHA- 8

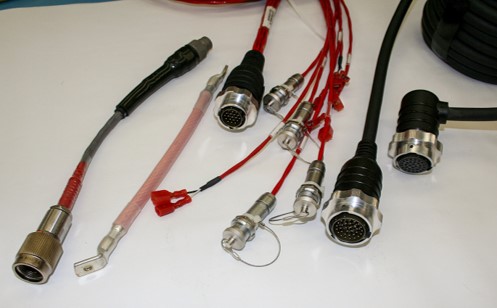

cables 2 assembly



RELATED ARTICLES

GUIDE TO MAKING AN ELECTRONICS BOX BUILD ASSEMBLY

If you've put in the hard work of designing an electronic product, chances are you have high expectations for its...

READ NOW



Outsourcing a Box Build Assembly? Here's How to ID a Great Partner

MEMS Design Guide for PCB Electromechanical Assemblies



Let's Find a Solution.

Our proven experience and technological capabilities have helped solve challenges for many companies.  Contact us today to learn how we can help solve yours.
