Printed Circuit Board Assembly Services
We specialize in low-to-high volume, complex assemblies that other contract manufacturers can't handle. Our fully automatic SMT lines, semi-automatic THT equipment, and our experienced hand assembly team will benefit your bottom line.
SURFACE MOUNT TECHNOLOGY
A printed circuit board (PCB) can be an asset or a liability for an electronic product. For more than 30 years, we have designed PCBs for various challenging applications. Our designers are IPC-certified and skillful craftsmen who will work with you to design a quality PCB that meets all your requirements.
SMT CAPABILITIES:
- SMT Experience since 1989
- IPC Certified Lead-Free Processes & Equipment
- BGA & MicroBGA (Ball Grid Array)
- Smallest Component Placement 008004 (0.010 x 0.005 Inches) 0201 (0.25 x 0.125 Metric)
Through-Hole Technology
Most new projects are migrating toward surface mount assembly. However, there are some situations where through-hole (THT) assembly makes for a better product. Through-hole is used more in extreme-use scenarios such as military and aerospace, where the high-stress-like temperature is a factor.
THT Capabilities
- IPC Certified Hand Soldering
- Precision Component Lead Forming
- Selective Solder Equipment
Inspection & Testing
We make it a point to utilize the latest industry technology in our testing and inspection processes. Our philosophy is "There is no such thing as too much inspection."
- Visual Inspection
- X-Ray Inspection
- Automatic Optical Inspection (AOI)
- Solder Paste Inspection (SPI)
- Component Inspection
- Component Value Check
- Functional Testing
- RF Testing
- In-Circuit Testing (ICT)
- Flying Probe Testing
- Burn-In Testing
- DFT (Design for Testability)
- High Voltage Testing
- Hi-Pot Testing
- IC Burning
- Impedance Testing
- Soak Testing
- Thermal Aging Testing
EQUIPMENT
It is essential that Matric Group continue to invest in modern machinery and technologies that will keep up with our customers' demands.
- JUKI Storage System - Humidity-Controlled Component Units
- Selective Solder Machines
- Wave Solder Machines
- AOI Machines
- X-Ray Inspection Machines
- Flying Probe Circuit Test Machines
- Potting
- Laser Etch
- Semi-Automatic PCB Depanelizing System
- Router & Laser
- Conformal Coating
- Spray Booth
- Selective Coating Machines
- Conap
- Hysol
- Humiseal
- Vertical Lift Humidity Controlled Component Storage System
PCB PANEL &
COMPONENT SPECIFICATIONS
The information listed below shows minimum and/or maximum capabilities. If you have a question, click HERE.
BOARD TYPE
- Flexible
- Rigid
- Rigid-Flexible
- Hybrid
- Rogers
- Ceramic
ASSEMBLY TYPEMixed
- Surface Mount Technology (SMT)
- Through-Hole Technology (THT)
MAXIUM BOARD SIZE
- 16"x20"
BOARD SIZE
- Standard
- Irregular
MIN/MAX COMPONENT SIZE
- MT size 03015, 0201 or greater
STENCILS
- Frameless 39"x39"
COATING
- Urethane
- Acrylic
BOARD FINISHES
- Lead
- Lead-Free HASL
- FNIG
- Gold Plating
FINE PITCH
- .4mm
BGA PITCH
- .2mm
SOLDERING TYPE
- Hand
- Leaded
- Lead-Free (ROHS)
- Wave
- Reflow
- Robotic
- Selective
- Tin-Lead
FILE FORMAT
- Ascii CAD
- CAD
- DXF
- Gerber
- ODB++
- Orcad
ORDER TYPE
- Prototypes
- Production
PACKAGE TYPE:
BGA, BGS, BTC, CBGA, CCGA, CCGA, CCM, CGA, CLCC, COF, CSP, CSPs, DFN, DIP, DSBGA, DSP, FFPGA, SOIC, FPGA, IC, LCC, LCCs, LGA, LIDS, MBGA, MELF, Micro-BGA, MLF, MSOPS, Odd Form, PBGA, PLCC, POP, PQFN, QCG, QEP, QFN, QFP, QPF, QPN, SOD, SOIC, SOJ, SON, SOP, SOT, SSOP, TBGA, TQFP, TSOP, TSSOP, VFBGA, VGA, WLCSP, XFP
CERTIFICATIONS
Matric can deploy one of your testers with an established procedure or help to create a new tester and procedure from minimal information. Customer involvement is recommended and likely includes approval of test rigs and operations.

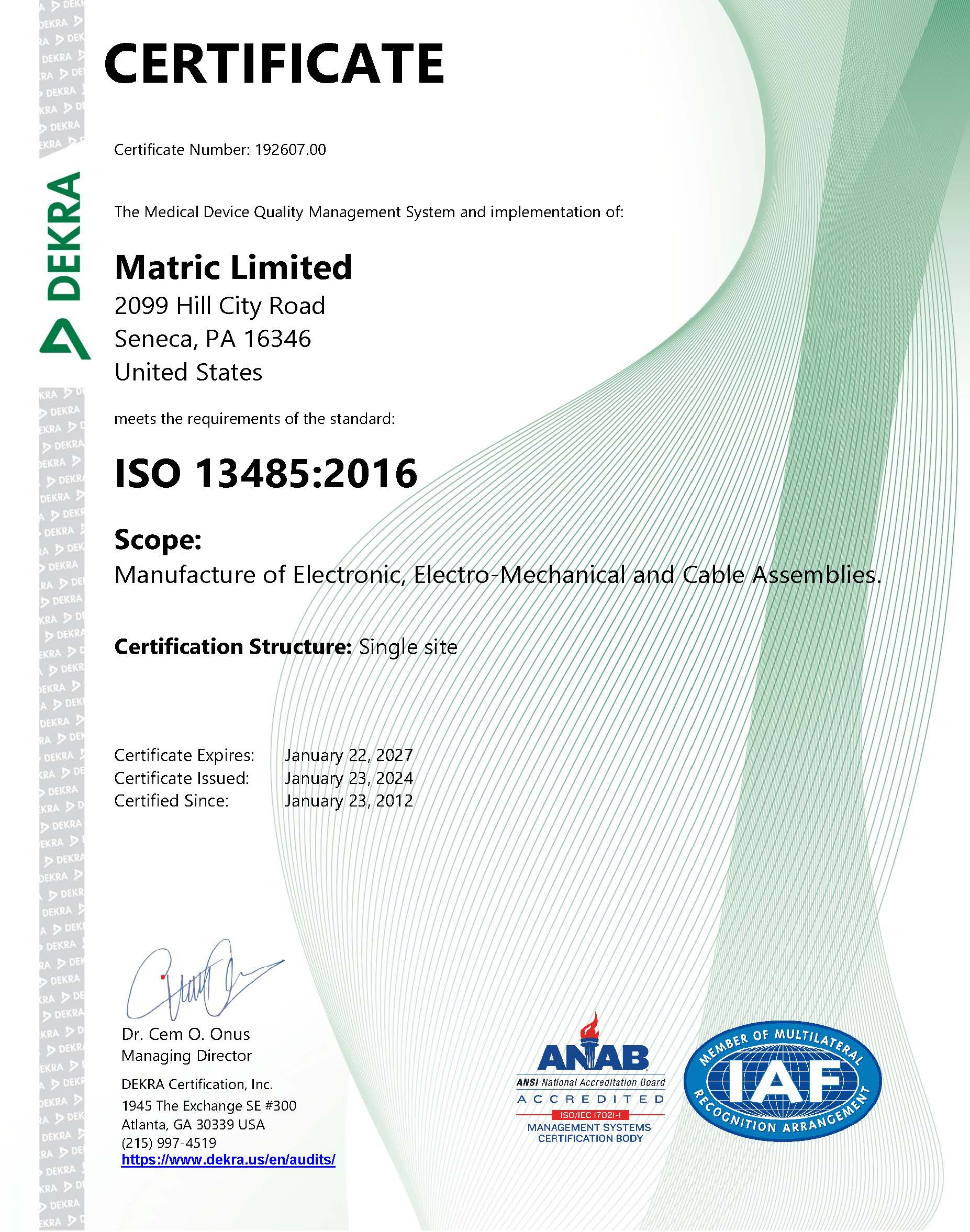

- ISO 13485:2016

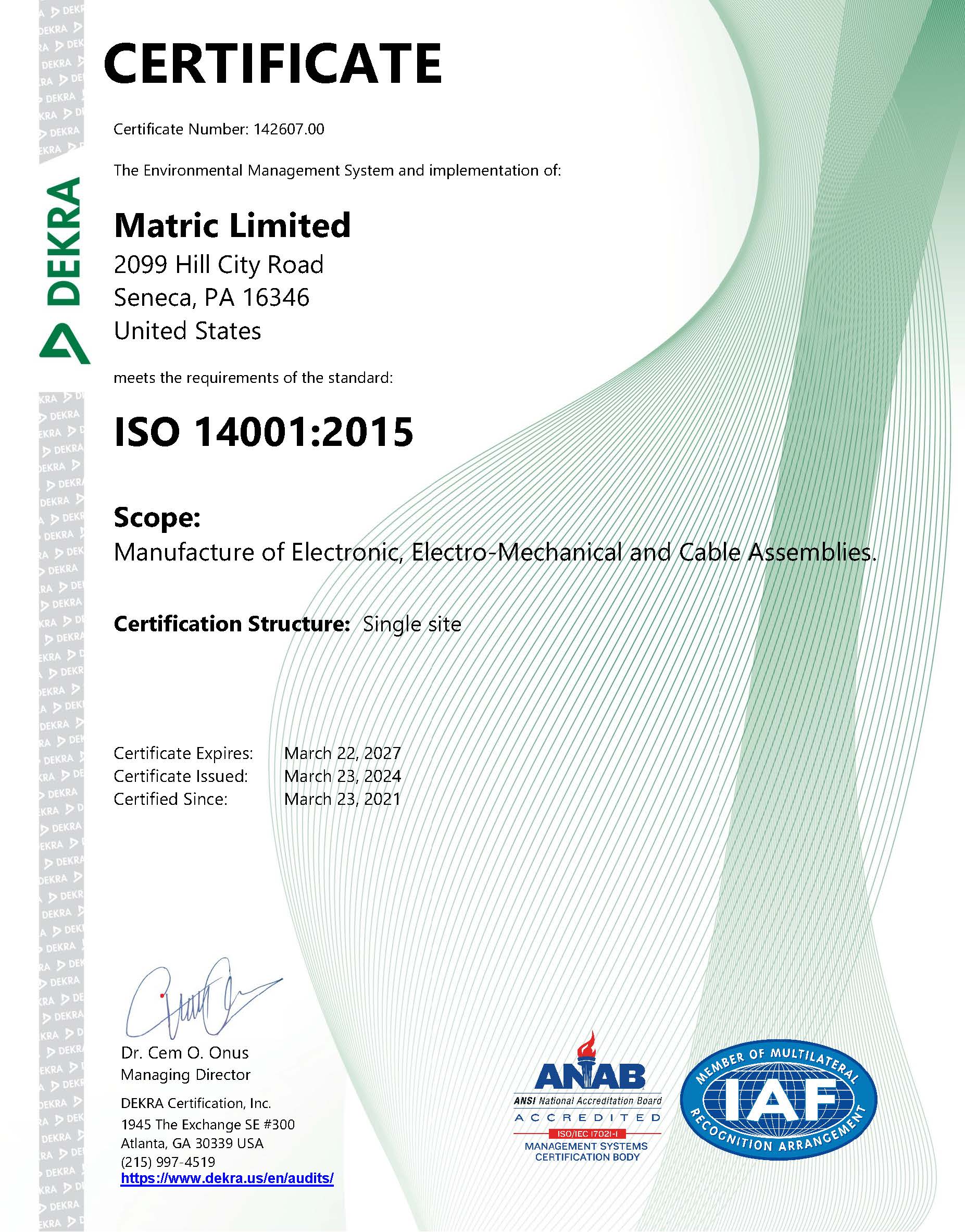

- ISO 14001:2015
- AS 9100D Aerospace

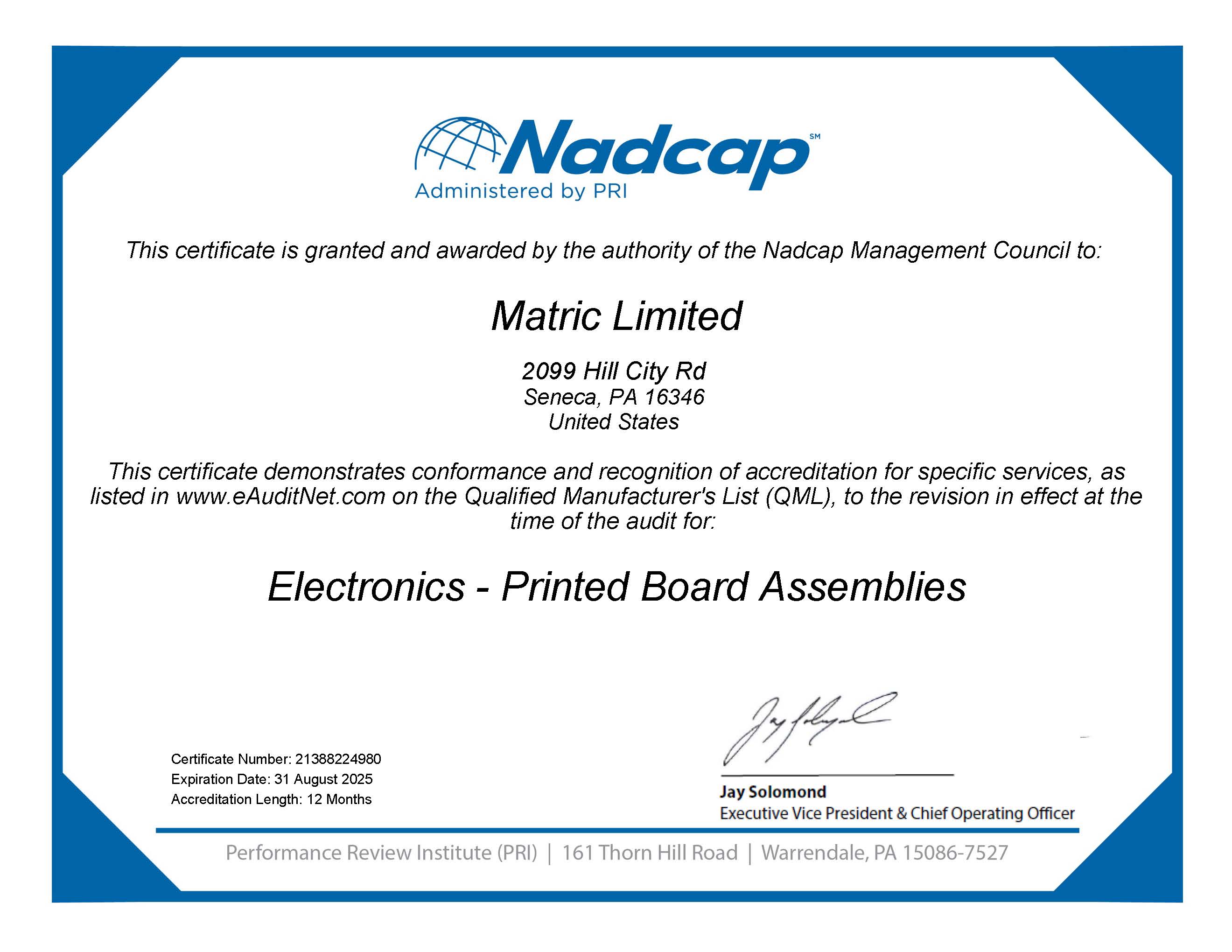

- NADCAP - Electronics
- ITAR Compliant
- RoHS Compliant
- ATEX/Ex QAN
- US/Canada JCP
- IPC 610 & 620; IPC-J-STD-001
- HUBZone Certified
VALUE-ADDED SERVICES
Although we offer quick turn board assemblies, we are a full-service contract manufacturer providing a menu of value-added options. With over 50 years of experience in this industry, we are your one-stop shop.
Have you had difficulty finding an ALL-IN-ONE contract manufacturer?
Our proven experience and technological capabilities have helped solve challenges for many companies.
Contact us today to learn how we can help solve yours.
