Electronic Manufacturing Services

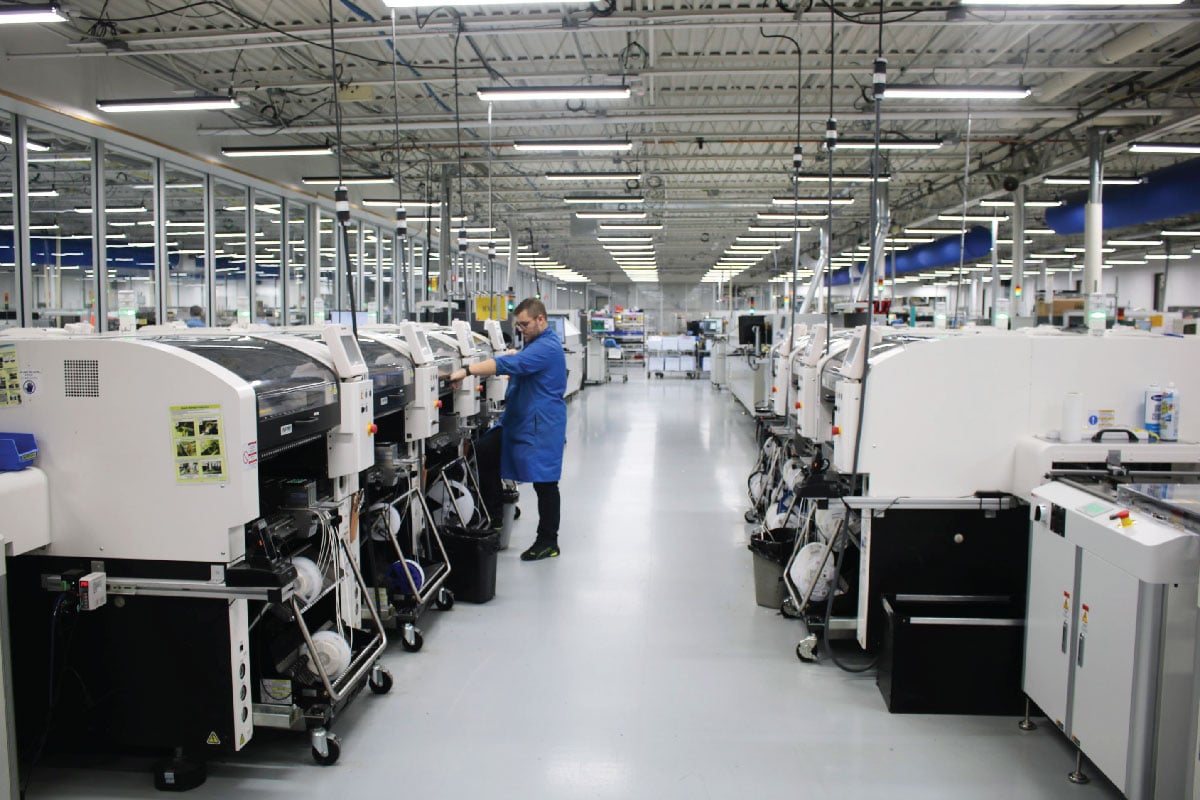

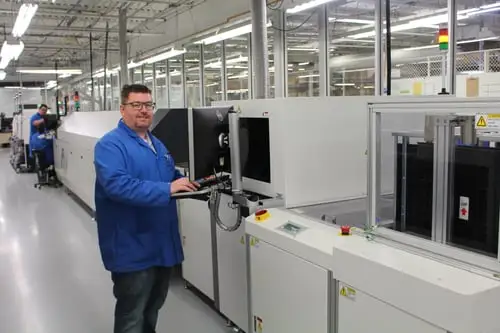

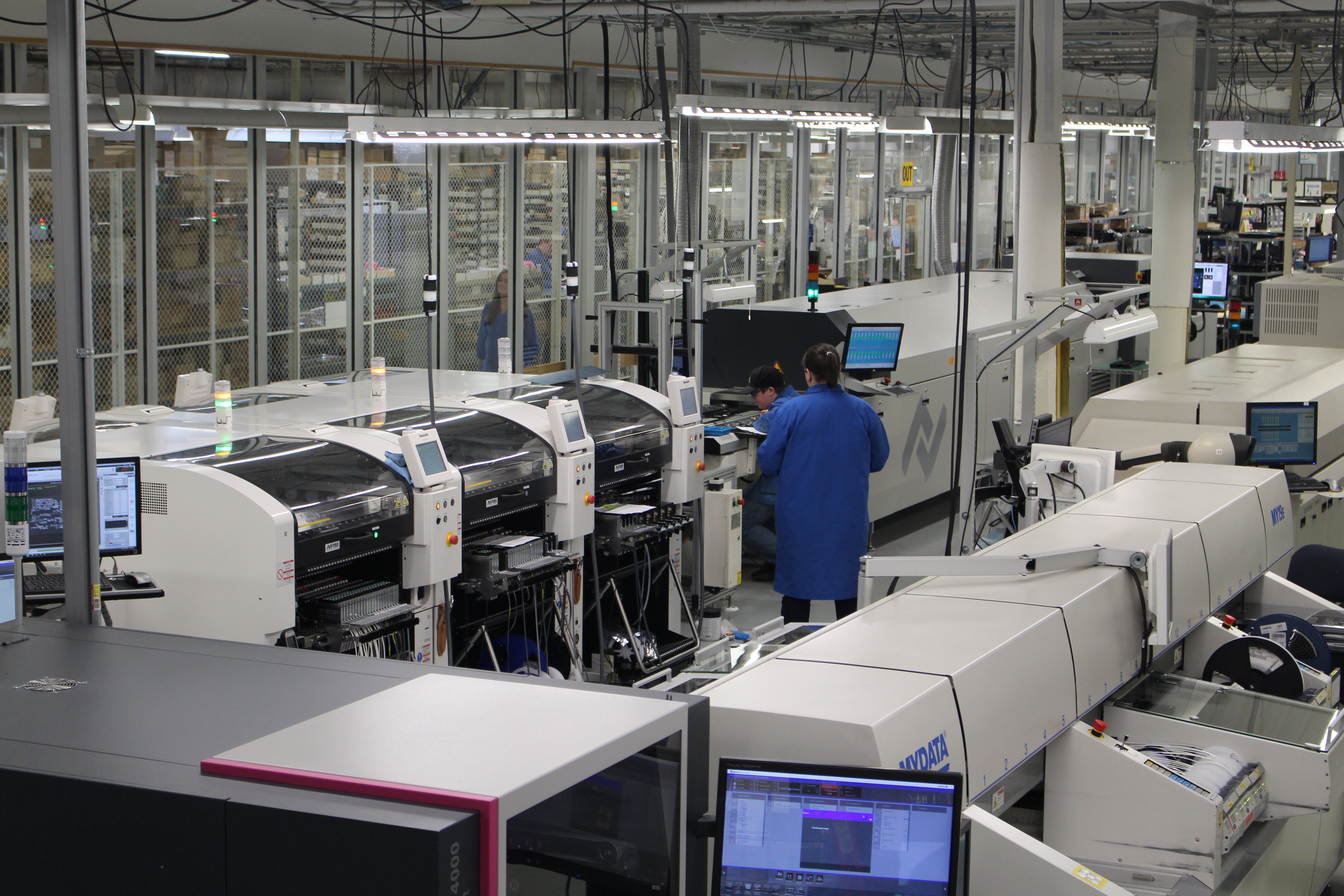

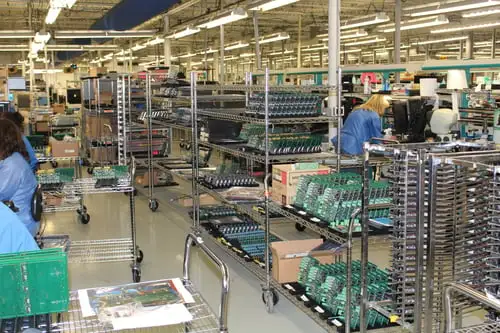

Matric has been providing Surface Mount Technology (SMT) assemblies since the late 1980’s. Over the years, Matric has invested in state-of-the-art machinery to improve the speed, accuracy and reliability of SMT products. The newest fully automatic SMT system was added in 2011.

The newer SMT systems join an already well-established automatic SMT system that has been operational since September, 2000. All four SMT lines are lead-free process ready for RoHS compliant products.

PCB Assembly SMT

  • High mix/ low to mid volume manufacturing
  • BGA and uBGA capabilities
  • Fine pitch down to .015″
  • Lead-free process available
  • Repair and upgrade capabilities
  • SMT experience since 1989
  • Conformal coating

Matric has a fleet of semi-automatic pick-n-place assembly machines for Through-Hole Technology (THT) products. The wavesolder machine has a dedicated pot for lead-free solder.

PCB Assembly THT

  • Semi-automatic pick-n-place assembly
  • Certified hand soldering
  • Precision component lead forming
  • Dual wave flowsolder machine with aqueous cleaning
  • Conformal coating



Functional Test Outsourcing

Matric provides full functional testing upon customer request. Our team of manufacturing engineers and technicians will work closely with customer personnel to transfer knowledge and custom equipment to Matric’s facility. Our customers continue uninterrupted operations during the change over so the transition is transparent to end users. In-house functional testing is another value added service that can make your operation more profitable.

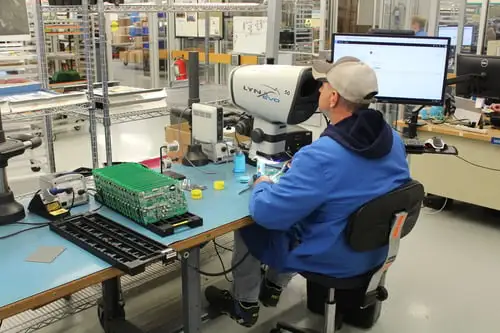

Testing Methods

  • Visual inspection
  • X-ray inspection
  • Flying prober equipment
  • Automatic optical inspection equipment
  • BGA inspection equipment
  • Functional testing
  • System simulation

Matric is your one-stop cable and mechanical assembly provider. With an ISO9001:2000 certified Quality Management System, Matric will engineer, test and manufacture quality cable assemblies from micro push-pull connectors to large Harting® assemblies and complex mechanical subassemblies.

Products:

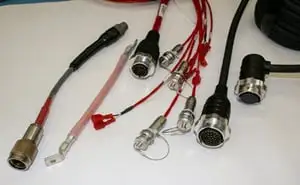

  • Cable assemblies
  • Harsh environment cables assemblies
  • Harnesses
  • Mechanical subassemblies
  • Control panels/boxes
  • Panel wiring and assembly

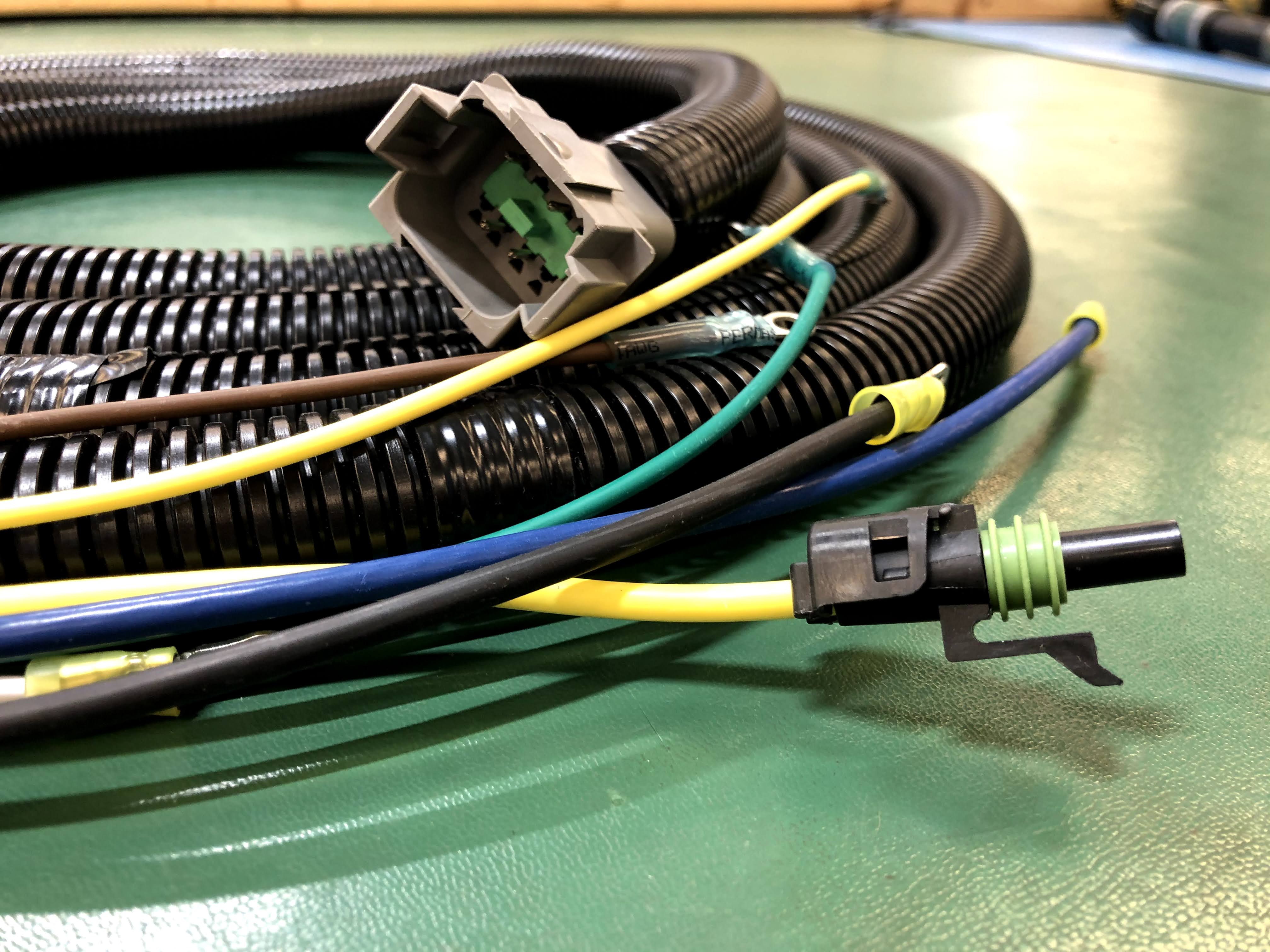

Cable/Harness Assembly

  • Specializing in harsh environment Cables assemblies (24-8 AWG)
  • Automated cable testing
  • Continuity and highpot testing
  • Certified hand soldering
  • Injection over-mold capabilities
  • Refurbish and update capabilities

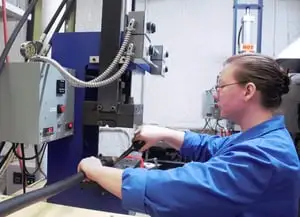

Custom Over-Mold Capabilities:

  • 30-ton, 5-oz. plastic injection mold machine
  • Custom mold design
  • Variety of modular molds in stock
  • PVC, Polypropolene and Santoprene

Specialty Tools and Equipment:

  • Automatic/Programmable wire strip & crimping tools
  • Automatic/Programmable test equipment
  • Continuity & Hipot OmniTester equipment
  • Over 250 crimping tools in stock
  • Positioners
  • Die sets
  • Insertion tools
  • Extraction tools

Value-Added Services:

  • Refurbish and update capabilities
  • Dedicated engineering staff
  • Certified hand soldering
  • Build to IPC-WHMA-A-620

Cable Assemblies Brochure Download

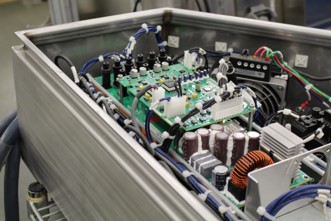

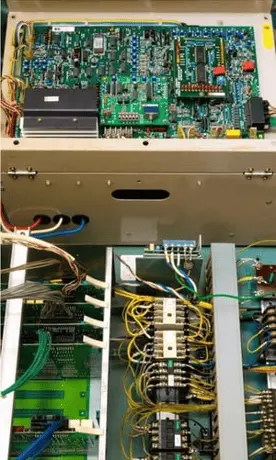

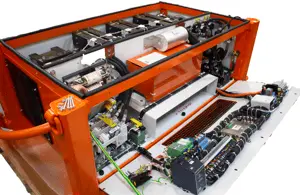

Box build

  • Dedicated final assembly team
  • Steel, aluminum, or plastic enclosures
  • Custom packaging for shipment
  • Functional testing
  • Configuration management
  • Encapsulation capability
  • Intrinsically safe electronics design and manufacturing
  • Enclosure Design
  • 3D modeling
  • Potting, encapsulation and heat shrinking
